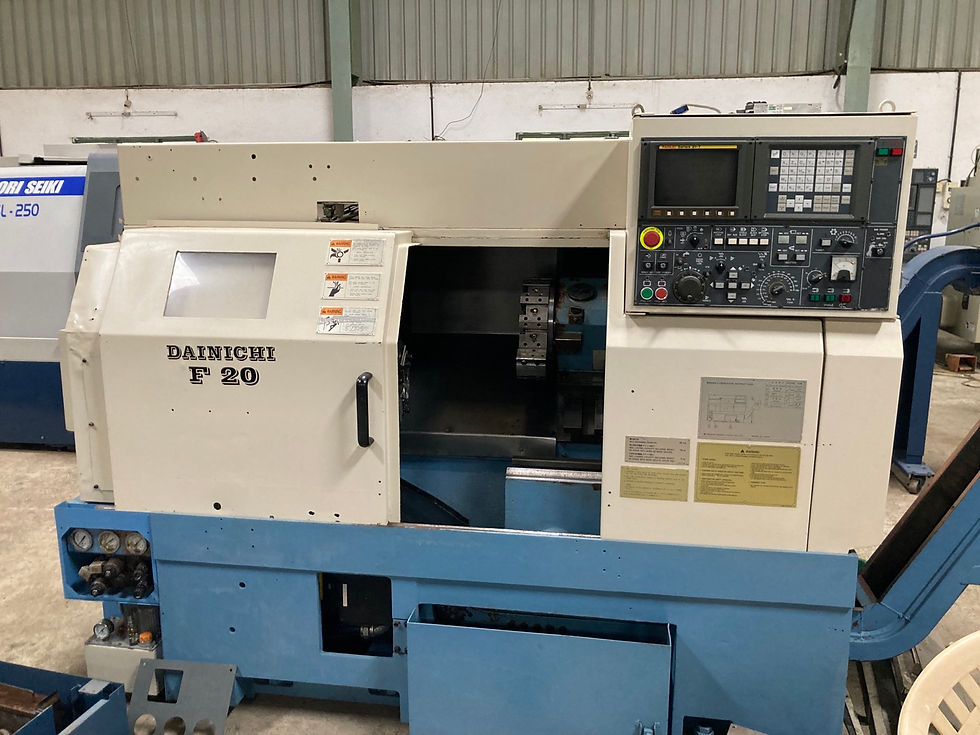

DAINICHI F-20
All specifications are approximations, and are subject to verification.
“On Our Floor now, can be inspected Under powered, in full working condition.”
MACHINE SPEC
Make: DINICHI
Model #: F-20
Serial #:
Country of Origin: Japan
Condition: Very Good
Equipped With:
- Box Ways Design
- CNC Control FANUC 21T
- NEW KITAGAWA 10" Hydraulic Chuck
- Hydraulic Tailstock
- Turbo Chip Conveyor
- Coolant System.
- Comes with Books and Parameters Backup.
Specifications:
Max Turning Diameter:310mm
Max Turning Length: 600mm
Max Bar Capacity: 62mm
Swing Over Cross Slide:
Swing Over Bed: 450mm
Distance Between Centers: 620mm
Spindle Nose: A2-6
Spindle Speed: 4500rpm
Spindle Motor: 11/15 kVA
Turret Capacity: 12 Stations servo hydraulic
Tailstock Taper: MT-4
General:
Overall Dimensions: 85 x 70″ x 70″ High with Chip Conveyor
Weight: 3500 kgs
